Which Bridge Design Is Strongest? Lessons from Model Tests and Real Structures

If you’re asking which bridge design is strongest, the honest answer is not a single bridge name. It is a question about metrics.

A bridge can be called “strongest” because it carries the most load before failure, because it deflects the least under a given load, because it delivers the best strength-to-weight efficiency, because it lasts the longest in service, or because it can span the greatest distance. Those are different tests, and different bridge forms do well in different ones.

That is why model-bridge debates and real bridge engineering often seem to give different answers. In many classroom and hobby builds, truss bridges are the most dependable starting point because triangles help distribute force efficiently, shorten vulnerable members, and produce strong strength-to-weight results. In full-scale engineering, though, the “best” bridge depends on span, loading, site conditions, materials, and risk.

So it helps to separate two questions right away:

• Which design tends to perform best in small model tests?
• Which design makes the most sense in full-scale infrastructure?

Once those are separated, the answer becomes much clearer.

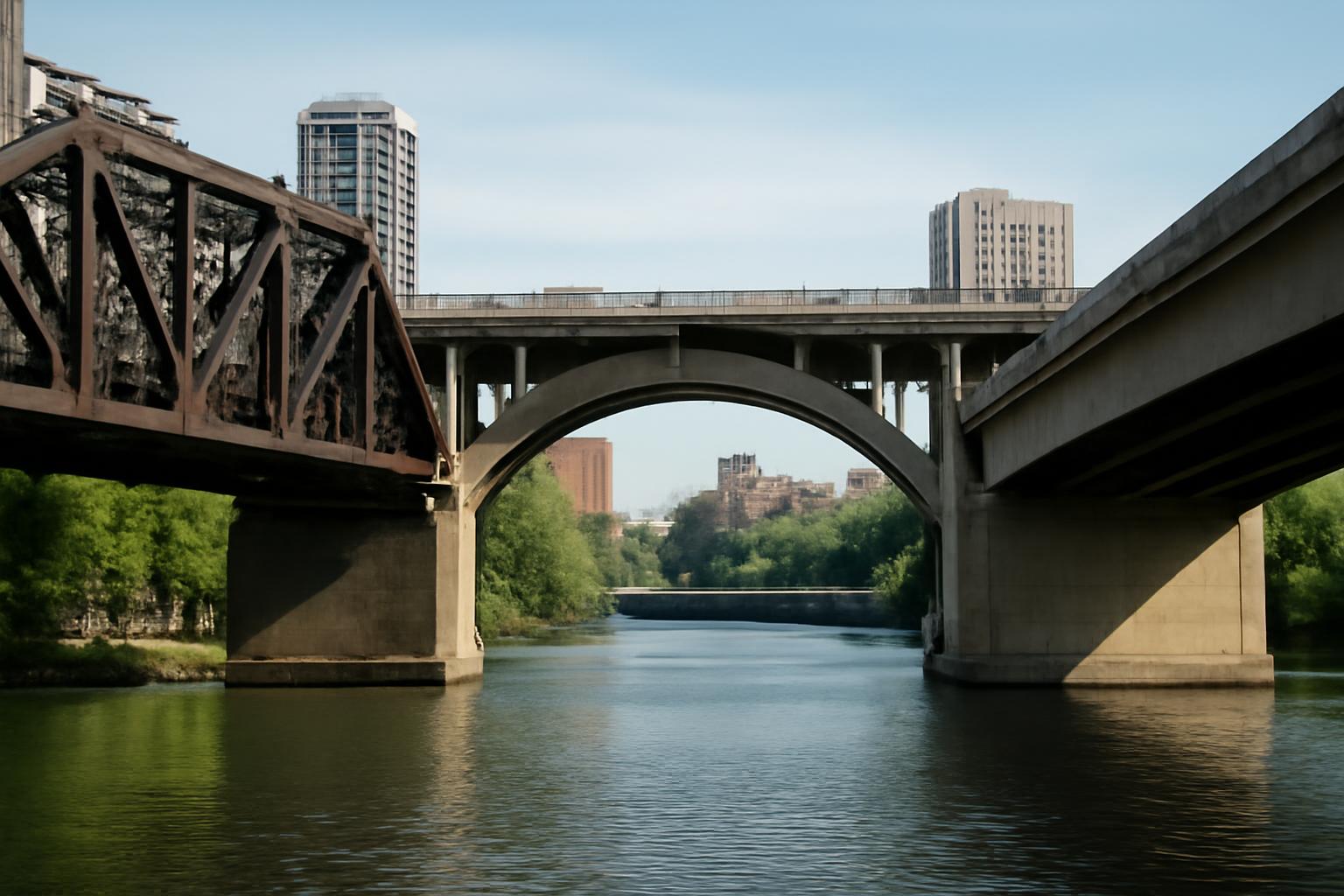

Why No Single Strongest Bridge Design Exists

There is no universally strongest bridge design because bridge performance depends on context: span length, traffic, static versus dynamic loading, material, foundation conditions, weather exposure, maintenance demands, and budget. A short pedestrian bridge, a railroad crossing, and a wind-sensitive sea crossing are not solving the same problem, so they should not be expected to use the same structural form.

Typical span ranges alone show why a single winner makes no sense. One industry overview lists beam bridges as usually suited to spans under 80 meters in typical practice, arch bridges up to about 500 meters, cable-stayed bridges around 500 to 1,000 meters, and suspension bridges for the very longest crossings, with examples exceeding 2,000 meters.

Strength is also only one design objective. Engineers care about stiffness, redundancy, durability, inspection access, cost, and performance under wind, earthquakes, floods, collision, and repeated traffic. Real bridges are selected for longevity and safety as well as raw capacity, and design choices affect service life, safety, and cost (Morson Praxis bridge design overview).

That difference becomes especially important when people compare model bridges with real structures. Model contests often reward lightweight efficiency or low deflection under a simple load. Real bridges must survive years or decades of service, repeated loading, environmental exposure, and extreme-event risk. Those are not the same design conditions.

So the best answer to “Which bridge design is strongest?” is usually: strongest for what? For a school model under a static load, a truss is often the smartest answer. For a compression-friendly structure with strong end supports, an arch may be ideal. The right bridge is the one that matches the job.

Core Principles of Bridge Strength

Even though no single bridge type wins every comparison, strong bridges share the same underlying mechanics.

The first principle is a clear load path. A bridge has to channel gravity and other forces into abutments and piers while balancing tension and compression. In general terms, strong bridges work by organizing those forces instead of letting them accumulate unpredictably in bending or twisting (How it Works: Engineering Bridges to Handle Stress).

The second principle is geometry, especially the use of triangles. Multiple sources in the evidence pack make the same basic point: triangles distribute force efficiently and help convert loads that might otherwise cause bending into axial tension and compression. That is why triangular systems are so common in trusses and so useful in lightweight bridge models.

A related principle is member length and bracing. In practical model-building guidance, shorter members are repeatedly favored because long compression members are more likely to buckle. Informal but mechanically sensible competition guidance also emphasizes overlapping joints, glue fillets, laminated chords, and box-truss layouts to keep compression members from folding or twisting too early.

Materials matter too, but mostly in combination with shape. The sources consistently show that bridge strength is not just about choosing a “strong” material. It is about placing material where it is most useful, selecting forms that distribute force well, and matching the material to the span and environment. That is why beam shapes, trusses, and other engineered sections are so important.

Finally, joints and lateral stability matter as much as the side view. A bridge can look excellent in elevation and still fail because a connection peels apart, a top chord buckles, or the whole structure twists sideways. In real bridges, the same idea appears as detailing, redundancy, and resistance to unexpected stress.

Truss Bridges: Often the Model Strength Champion

When people ask which bridge type usually performs best in school bridge projects, the truss is the safest general answer.

The reason is straightforward. A truss breaks a span into many smaller members, usually arranged as triangles. That gives the load more than one path, reduces the demand on any single long element, and often produces very good strength-to-weight performance in small models.

One classroom comparison makes that pattern easy to see. In a California State Science Fair project using three 0.75-meter popsicle-stick bridges loaded with sand up to 7 pounds, the truss showed 0.2 cm of cumulative deflection, the arch 0.69 cm, and the beam 2.01 cm. The same project reported average incremental deflection values of 0.0285 cm for the truss, 0.0985 cm for the arch, and 0.2871 cm for the beam (California State Science Fair project summary).

That result should be read carefully. It is a deflection test, so it tells us most directly about stiffness under that load, not the exact collapse load. It also appears to be a single student project rather than a large replicated study. Still, it is useful classroom-scale evidence because it compares the three forms under the same materials and setup and shows a very clear ranking: truss first, arch second, beam third.

Mechanically, that ranking makes sense. A simple beam asks a long horizontal member to resist most of the bending. An arch can be extremely efficient, but only if its geometry and supports work with the load. A truss gives model builders a more forgiving route: use triangles, shorten members, and spread forces through the structure instead of relying on one perfect curve or one long beam.

There is also hobby evidence pointing in the same direction, though it should be treated only as anecdotal. In one user-reported comparison over an 11-inch span, a flat truss reportedly held 46.3 pounds of water while a Warren truss held 30.9 pounds in that specific setup. The same source explicitly warns that there is no universal strongest design and that results depend heavily on material, loading, and execution (Garrett’s Bridges discussion of strongest bridge designs).

That is why trusses dominate so many educational bridge contests. They are not magic. They are just an unusually practical combination of stable geometry, efficient force flow, and forgiving optimization. For model work, that often makes them the best default choice.

Arch and Beam Bridges Compared

Arch and beam bridges are useful comparison points because they show why “strongest” changes with the test you care about.

A beam bridge is the simplest structural form: a horizontal member spanning between supports. In practical terms, that simplicity is a major advantage. Beam or stringer bridges are common because the form is direct and easy to build for short spans. But the basic weakness of the beam is also direct: as load increases, bending increases, and deflection grows.

In the popsicle-stick test above, the beam was far more flexible than either the arch or truss under the same loading. For short spans, beams can be entirely appropriate.

An arch bridge works differently. It tries to carry load mainly through compression along a curved path and then push that force into the supports. Conceptually, that can be very efficient. One informal structural discussion in the evidence pack argues that, for a centered point load, an arch shaped to match the thrust line can be more material-efficient than a truss because it minimizes bending and carries the load primarily in axial compression. That is best treated as a theoretical note, not a universal design rule, because the same discussion stresses that the answer depends on the efficiency metric, support conditions, and assumptions used.

Those support conditions are the catch. An arch needs abutments that can resist horizontal thrust. If the supports are weak, expensive, or difficult to build, the arch’s theoretical efficiency becomes much harder to realize. That is one reason arches can be excellent in some settings and less attractive in others.

So the right comparison is not “arch bad, truss good.” It is more specific:

• Beam: simplest form, but highly vulnerable to bending and sagging as spans or loads increase.
• Arch: very efficient in compression when geometry and supports are right.

That is also why the classroom ranking of truss over arch over beam is helpful but limited. It is a good model-building rule of thumb, not a universal engineering ranking.

Truss Variants: Pratt, Howe, Warren Tested

Once someone accepts that a truss is often a strong choice, the next question is usually which truss: Pratt, Howe, or Warren?

The evidence here is much narrower than many online debates suggest. A useful controlled comparison comes from a student research poster that tested Pratt and Howe truss models built with the same amount of material over a 78.5 cm span under a 1 kg static load placed in three positions. In that experiment, the Howe truss produced a lower maximum compression force than the Pratt: 5.73 N versus 7.21 N (Model Truss Bridge Design poster PDF).

That is a meaningful result, but it does not automatically mean “Howe holds more total weight.” What it shows is that, in that particular model setup, the Howe arrangement reduced the peak compression demand in the most critical member. That can matter because compression members often fail by buckling. But it is still one model study under one load regime.

Hobby and classroom experience remains messier. Garrett’s Bridges explicitly argues against declaring a broad overall winner among Pratt, Howe, and Warren designs, while also suggesting that, for small model bridges, Pratt may often be more efficient than Howe. The same discussion includes user anecdotes about Pratt favorites and hybrid designs holding 100 pounds or more, but those examples are not controlled research and should be read only as implementation-specific examples, not proof of a general rule (Garrett’s Bridges discussion of strongest bridge designs).

For strong model bridges, several habits show up repeatedly in the evidence:

• Build two side trusses, not one flat wall.
• Connect them into a box-like structure so the bridge resists twist.
• Reinforce the top chord, since compression members are frequent failure points.
• Add extra bracing where the load is actually applied.
• Keep the structure symmetrical and well aligned unless the rules demand otherwise.

Those recommendations also appear in model-building guidance that tells students to design around the loading points, make the top chord thicker, build two matching side trusses, and connect them carefully with cross members and diagonals.

So if you want the strongest practical model, the right question is usually not “Which truss name is strongest?” It is “Which layout can I build accurately, brace properly, and keep stable in three dimensions?”

Real-World Span Leaders and Examples

Model bridges reward strength-to-weight efficiency under simple loads. Real infrastructure often rewards something else: the ability to cross a certain distance safely, economically, and durably.

That is why suspension bridges dominate the longest spans. The span ranges cited earlier include suspension bridges exceeding 2,000 meters, with the Çanakkale Bridge at 2,023 meters and the Humber Bridge at 1,410 meters as examples. The same source places cable-stayed bridges roughly in the 500 to 1,000 meter range and notes the Forth Bridge as a major cantilever example with a 521-meter main span (Morson Praxis bridge design overview).

That matters because it shows how misleading a single strongest ranking can be. A truss may outperform a beam or arch in a popsicle-stick stiffness test, but if the challenge is crossing a kilometer-plus waterway with few piers, the relevant question is span strategy, not classroom load efficiency.

At shorter and medium spans, different priorities take over. Truss bridges remain attractive where economical load distribution and modular members are useful, which is one reason broad engineering overviews associate them with rail and other heavy-load applications. Arch bridges remain attractive where compression-friendly forms and durable materials make sense, and general bridge overviews still point to Roman arch bridges as long-lived examples of that durability (Enerpac overview of bridge types).

So the full-scale summary is not a single winner. It is a set of matches between structure and job:

• For the longest spans, suspension leads.
• For major medium-long spans, cable-stayed is often competitive.
• For shorter and medium spans with efficient member-based load distribution, truss solutions can be excellent.
• For compression-friendly sites with strong supports, arches can be outstanding.

That is how civil engineers actually think about bridge choice. They do not ask which type wins in the abstract. They ask which type fits the crossing.

Model Building Tips for Maximum Strength

If your goal is to build the strongest practical model bridge, the most useful advice is less about bridge names and more about force control.

Start with triangles and short members. Break the span into smaller panels instead of relying on long unsupported pieces. That reduces bending, improves buckling resistance, and makes load paths easier to understand. In classroom guidance, students are also told to design around the loading area and to plan extra bracing where the load enters the bridge, which is exactly where many otherwise good models fail.

Then pay special attention to the compression members, especially the top chord. Practical model-bridge guidance repeatedly emphasizes laminated chords, overlapping joints, glue fillets, and joining two side trusses into a box truss so the bridge resists buckling and torsion more effectively. Those recommendations are especially common in lightweight toothpick and basswood contexts, where compression failure usually arrives before tension members tear apart.

A few build habits matter again and again:

• Laminate chords instead of relying on one thin piece in compression.
• Use overlaps and glue fillets so joints do not become tiny failure points.
• Turn two flat side trusses into a box truss with cross members.
• Add lateral bracing so the bridge does not roll or rack sideways.
• Keep the bridge symmetrical and straight during assembly.
• Reinforce the panel or deck area directly under the load point.

Testing is part of the design process too. Build prototypes if the rules allow it. Compare different heights, panel lengths, and brace patterns. Watch how the bridge fails. If a bridge rolls sideways, the problem may be torsion. If one top member folds, the problem is probably buckling. If joints split first, then the geometry may be fine but the detailing is not.

A vivid competition example shows what that looks like in practice. One basswood truss bridge documented by Garrett’s Bridges spanned 16 inches, weighed 37 grams, and reportedly held 346 pounds, for an efficiency above 4200. The builder’s own write-up says the bridge may have failed in torsion because it lacked diagonal braces, which makes the example useful not just for the load number but for the failure lesson too (Fernbank bridge competition example).

That is the broader lesson from strong model bridges: exceptional results come from balancing low weight with buckling control, joint quality, and torsional stability.

If you want a strong default strategy for a school build, this is a good sequence:

1. Choose a truss layout.
2. Keep members short and regular.
3. Build two side trusses and connect them into a box.
4. Strengthen the top chord and load zone.
5. Add lateral and diagonal bracing.
6. Remove unnecessary mass only after the structure is stable.

Beyond Design: Materials, Failures, and Factors

Bridge type matters, but it is only part of the story. Materials, detailing, construction quality, and hazards over time can all matter just as much.

One commercial discussion of pedestrian bridges gives a useful example of how material choice changes design options, though its claims should be read as application-specific rather than universal. In that context, fiber-reinforced polymer, or FRP, is described as weighing about 125 pounds per cubic foot versus about 500 pounds per cubic foot for steel. The same source describes FRP as lightweight and corrosion-resistant and gives a source-specific service-life comparison of 100+ years for FRP versus about 30 years for wood in that pedestrian-bridge framing. It also explains why I-beam geometry improves bending resistance by increasing moment of inertia (Areté Structures on bridge strength and materials).

The safe takeaway is not that one material is always better. It is that shape and material interact. A bridge does not become strong just because the material is strong in the abstract. Strength comes from using geometry that places material where it most helps resist bending, buckling, and deflection.

Failure history makes that even clearer. A 2022 review article in the Journal of Traffic and Transportation Engineering found that design error, construction mistakes, hydraulic action, collision, and overload were the top five causes of bridge failure in the investigations it reviewed, together accounting for more than 70% of the failures discussed. The same review emphasizes the importance of redundancy and capacity protection against extreme loads, which is a direct safety issue, not just a matter of elegant geometry (2022 review of bridge failure causes).

That is a useful correction to the strongest-bridge debate. A bridge can be efficient on paper and still fail because of poor detailing, weak construction, flood damage, collision, or a lack of alternate load paths after something goes wrong.

For students and hobbyists, that translates into better questions:

• What material am I using, and what are its weak modes?
• Which members are in compression and most likely to buckle?
• Could the bridge twist sideways?
• Are the joints stronger than the members they connect?
• What happens if one member is imperfect?

Those questions move the discussion past slogans like “truss is strongest” and closer to actual engineering thinking.

In the end, that is the most accurate answer. Bridge strength is contextual. Trusses often shine in model contests because triangles, short members, and efficient load paths make them strong for their weight. Real bridges, however, are chosen by matching the structure to the span, loads, materials, site, and risks. If you want the best result, test designs by the metric that matters and judge them within the scale they were built for.

Is truss always the strongest bridge design?

No. A truss is often the strongest model-bridge choice when the goal is good strength-to-weight performance or low deflection under a simple load, but that does not make it the best design in every context. For ultra-long spans, suspension and cable-stayed bridges are the relevant forms. For compression-friendly conditions with strong abutments, an arch can be highly efficient. The answer depends on whether you mean stiffness, ultimate load, efficiency, longest span, or service life.

Pratt vs Howe truss: which holds more weight?

There is no universal winner. In one controlled model comparison using the same material amount and a 1 kg static load, the Howe truss showed a lower peak compression force than the Pratt, 5.73 N versus 7.21 N, which suggests an advantage in that specific setup, but it does not by itself prove a higher ultimate load in every build (Model Truss Bridge Design poster PDF).

How much weight can a model truss bridge hold?

It varies enormously with span, material, construction quality, and contest rules. Some classroom tests only compare deflection under small loads. At the high end, one documented basswood competition truss reportedly spanned 16 inches, weighed 37 grams, and held 346 pounds before failure, but that was a single competition build, not a universal benchmark (Fernbank bridge competition example).

What shape is strongest for paper bridges?

In the Science Buddies activity, a folded channel shape with vertical side walls is the strongest simple paper-bridge form tested in the exercise because the folds increase stiffness and help the paper resist bending much better than a flat sheet.

Why do triangles make bridges stronger?

Triangles are stable shapes. They do not easily deform without changing the length of a side, so they help route loads into members working mainly in tension and compression instead of letting the structure bend or rack. In practice, that improves force distribution, reduces bending demand, and helps explain why trusses perform so well in many model-bridge tests.
